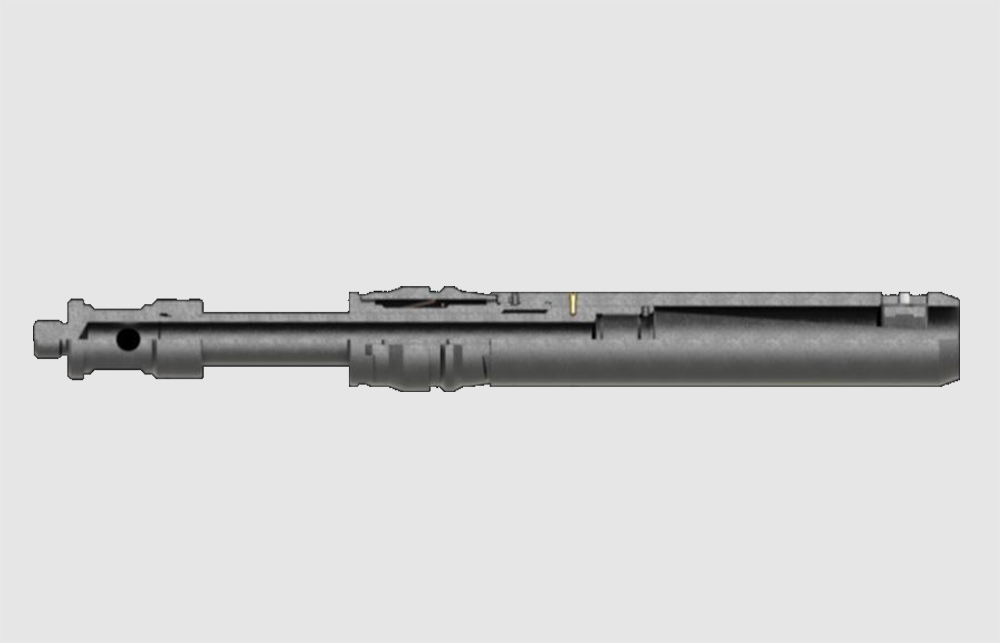

PUNCTURE COMMUNICATION TOOL

The Flapper Lock Open Tool is designed to lock the TRSV open for preparation of wireline insert The Puncture Communication Tool is designed to establish control line communication to the tubing through the ID of a tubing retrievable safety valve or landing nipple in one wireline trip. Communication is achieved by radial motion while wireline jarring which punctures a hole in the control system area of the tubing retrievable equipment. The communication tool was developed to remove all communication methods from the TRSV which caused premature communication during wireline operations.
