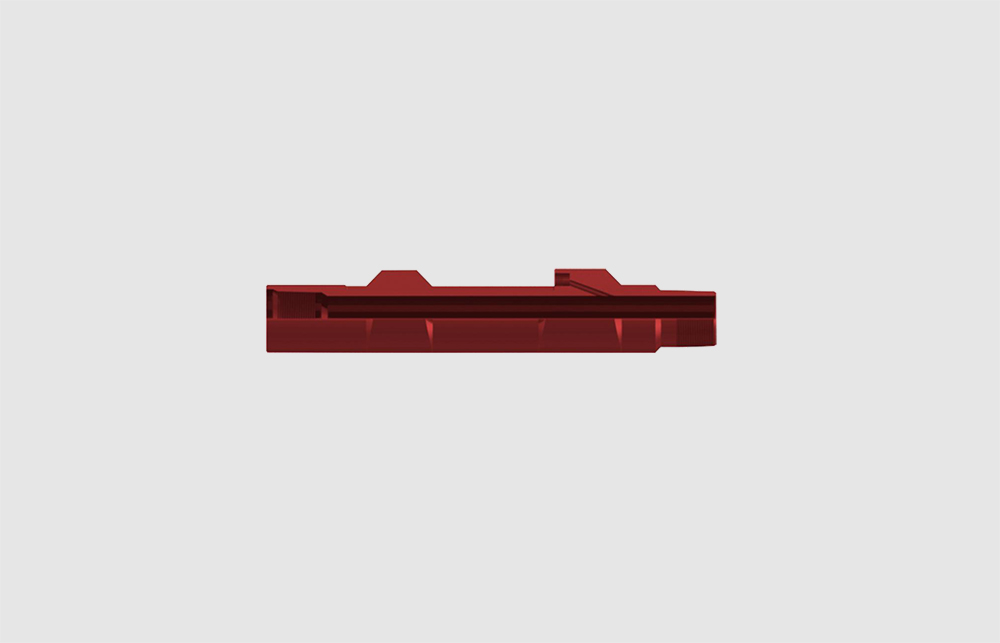

CONVENTIONAL CHEMICAL INJECTION MANDREL

Description

The conventional chemical injection mandrel is used to install 1″chemical injection valve, which is lowered underground by tubing to designated location for chemical injection operations. The mandrel is processed using the entire bar material, with high strength; Design with installation protection groove to protect the valve when running or pulling the tubing string. The conventional chemical injection mandrel is usually made of L80, L80-13Cr, and L80-9Cr materials, and materials can also be provided according to customer requirements. The connection thread can be customized.

Feature and Advantage

• Simple structure, convenient and reliable use

• with installation protection groove to protect the valve

• Same drift ID with tubing

• Standard NPT thread for valve

• Oblique structure, smoother running and pulling

• Use below 392℉

Application

• Chemical injection
